| Brand Name : | ZASP |
| Supply Ability : | 100 Piece/Pieces per Month |
| Price : | $45,000.00/pieces 2-49 pieces |
| Model Number : | Suprema RB-SM501 |
| Certification : | ISO22343-1, IWA 14-1 & PAS 68 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 5-8 work days |

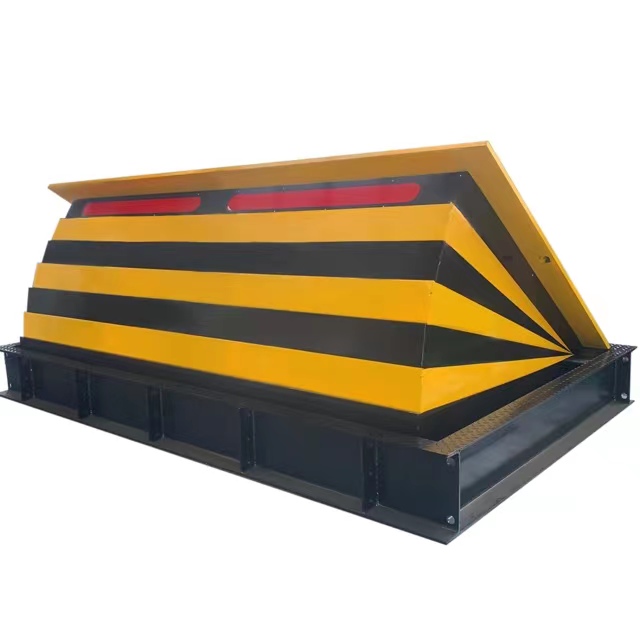

| Product Name | SM501-1000 Road Blocker |
| ROAD BLOCKER DIMENSION | (Intercept width+190mm)L x 1974mmW x 300mmH(Depth) |
| ROAD BLOCKER HEIGHT FROM GROUND LEVEL | 1000mm |
| ROAD BLOCKER INTERCEPT WIDTH | 3m - 4m - 5m |
| ROAD BLOCKER DEPTH | 300mm |
| TOP PLATE THICKNESS | 25mm (±2mm) |
| MOVEMENT PRINCIPLE | Hydraulic |
| RISING TIME | 3-5s |
| COLOR | Optional |
| TYPE OF USE | Intensive |
| ROAD BLOCKER FINISH | Anti-corrosion Treatment |
| E.F.O. CIRCUIT FOR EMERGENCY RISING | Optional - E.F.O. rising time 1.5s |
| PROTECTION CLASS | IP 67 |
| VOLTAGE FOR CONTROL UNIT | 380VAC / DC 12V , 50/60HZ |
| RATED POWER | 5.5KW (3m-4m-5m) |
| HYDRAULIC STATION DIMENSION | 1100L x 680W x 1700Hmm |
| LIFE UNITS | 10 years |
| IMPACT TESTED | IWA & PAS 7500KG/80KmH, equal M50/K12, ZERO penetration |
· National standard high-strength steel for the top plate;
· Heavy rolling without deformation;

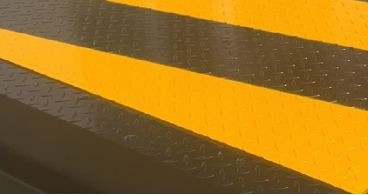

· Skid resistance pattern-steel surface;
· Static loading capacity: ≤100 tons
Passing loading capacity: ≤200 tons;

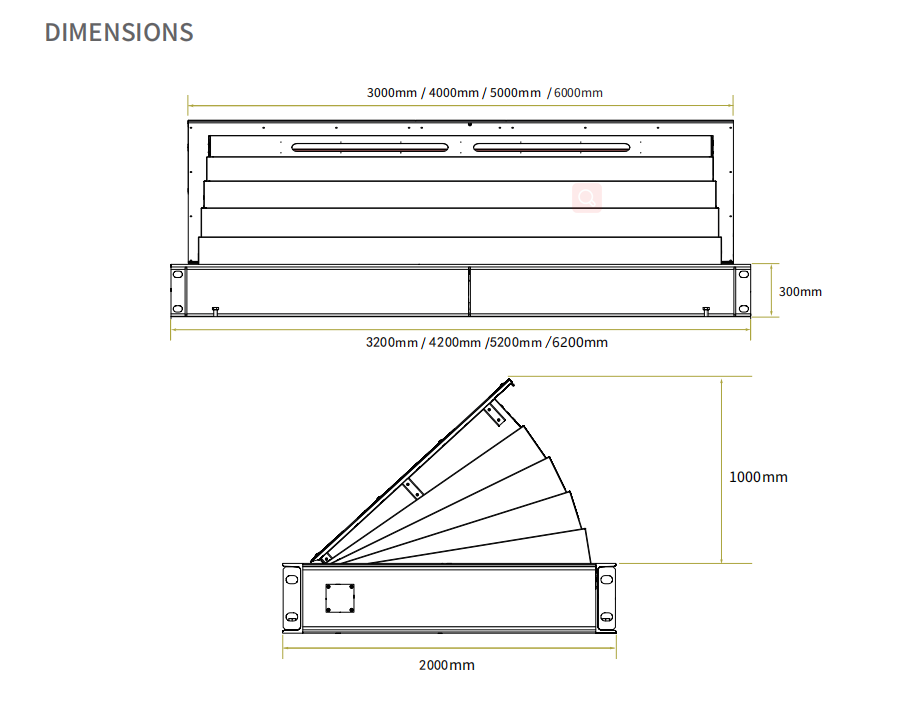

| Dimension | (Intercept width+200mm)L*2000mmW*300mmH(Depth) |
| Intercept Height | 1000mm(±10mm) |
| Intercept Width | 4M with front folding skirt 6M without front folding skirt |
| Depth | 300mm |
| Top Plate Thickness | 25mm(±2mm) |
| Product Weight | 4M-3100KG, 6M-4200KG |
| Movement Principle | Hydraulic |
| Rising Time | 3~5s |
| Color | Yellow & Black, RAL color optional |
| Type Of Use | Intensive |
| Finish | Special Anti-corrosion treatment(Hot Dip Galavanized+pure epoxy outfitting primer+polyurethane topcoat), Black/Yellow or RAL optional |
| Loading Capacity | Static Loading Capacity: ≤100 Tons Passing Loading Capacity:≤200 Tons |
| E.F.O Circuit For Emergency Rising | EFO≤2s,supply 2 times rising in case of power off. |
| Protection Class | IP68 |
| LED Warning Light | Yes |
| Device For Manual Handling | Yes |
| Voltage For Control Unit | 200V,triphasic,50HZ |
| Rated Power | 7.5Kw |
| HPU Dimension | Without Roof:1200Wmm*900Dmm*1700mm; With Roof:1260Wmm*960Dmm*1797Hmm; |
| Control System | PLC control,linkage work |
Emergency fast raise system
Emergency buttons with lock down
Accumulator systems for hydraulic operation in power failure conditions
Access and intercom systems
UPS backup for the electrical system
Interlocking systems to give air-lock type protection on sites with higher threat levels
Inductive loop systems
Traffic lights and back indications systems
Integral inset warning lights in
A3 steel cover plate with anti-slip coating
E.F.O. emergency start-up circuit (about 1.5 seconds)
Equipment for manual operation
Heat-resistant
Traffic light with two lights (green-red)
Loop inductive detector
Inductive loop
Our products have a wide range of applications, if you want to know more, welcome to click here! Case Studies
Are you looking for a reliable and effective way to secure your facility or property? Look no further than hydraulic wedge barriers!
These innovative security barriers are designed to block vehicle access to restricted areas, providing a strong layer of protection for your property. With their durable materials and easy operation, hydraulic wedge barriers are the perfect solution for a variety of settings, including parking lots, government buildings, and military bases. Protect your property and keep your peace of mind with hydraulic wedge barriers.
Beijing ZhuoAoShiPeng Technology Co., Ltd was established in 2009, which is professional manufacturer of Hostile Vehicle Mitigation roadway safety barrier equipment, the R&D and the operation office is situated in Fengtai District of Beijing. Warmly welcome new and old customers to visit and patronize! Come and contact us!
|
|
