    1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design

    Ask Lasest Price
    Brand Name : ZASP
    Supply Ability : 10000 Piece/Pieces per Month
    Price : $5,999.00/pieces 10-99 pieces
    • Product Details
    • Company Profile

    1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design

    Product Description
    1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design
    Specification
    Product Name
    Milita HB-HA301 Hydraulic Automatic Bollard
    Product Dimension
    656mmL*485mmW*1520mmH
    Diameter
    291mm±2mm
    Depth
    1520mm
    Height Above Ground
    1000mm±3mm
    Anti Crash Grade
    Anti Crash Grade
    Bollard Material
    Q345 Carbon Steel
    Surface Treatment
    Hot-dip Galvanized and Power Coated
    Movement Principle
    Hydraulic driving
    Cylinder Finish
    ADG Anit-corrosion Treatment with RAL color
    Supply Voltage
    AC 380V+10% 50Hz/60Hz
    Protection Class
    IP68
    Operating Temperature
    -40℃~+70℃
    Manual Emergency Lowering
    Build-in into the bollard, EFO with extemal HPU
    Hydraulic Unit
    3.000.000 CYCLES
    1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design

    IWA 14-1 & PAS 68

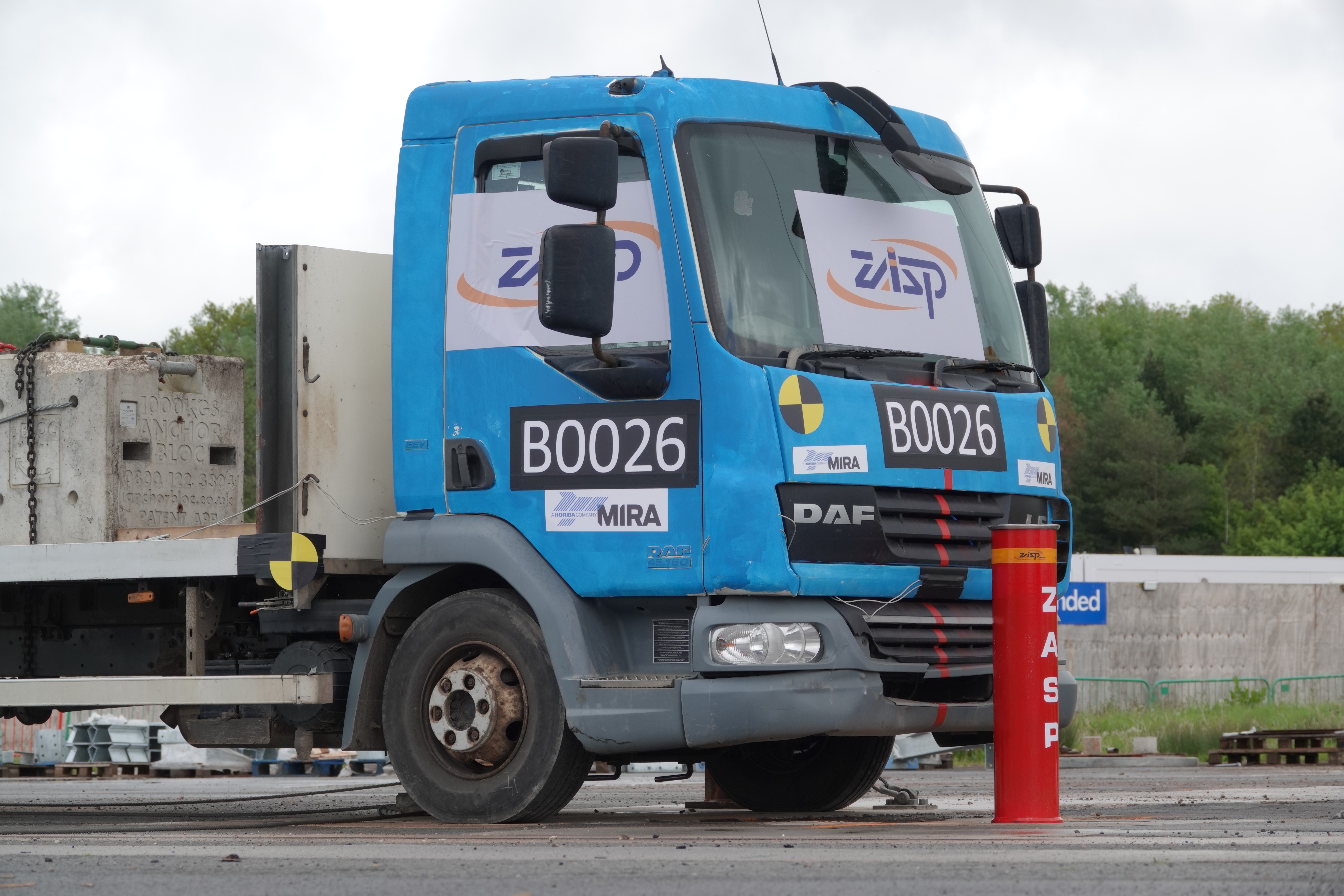

    Milita HB-HA301Hydraulic Automatic Bollard passed IWA 14-1 & PAS 68 impact test by 7500Kg/48Kmh, P1, ZERO penetration.

    1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design

    SINGLE Bollard Test

    This model type is installed in single unit or multiple units with an external power unit or internal hydraulic station (2 options) with PLC system, connected via the hydraulic hoses.
    1520mm Depth Fixed Bollards for Access Control System Impact and Crash Resistant Design

    The performance of after crashed

    After crashed the structural integrity remains intactstill and working stable.
    Company Profile
    Beijing ZhuoAoShiPeng Technology Co., Ltd. was established in 2009, which is professional manufacturer of Hostile Vehicle Mitigation security barrier, the R&D and the operation office is situated in Fengtai District of Beijing. And the manufacturing base is located in Renqiu City, Hebei Province, the fabrication space now comprises of more than 120,000 square feet of production area. ZASP provide high security level products of Hydraulic Automatic Bollards, Fixed Bollards, Road Blockers and Rising Beam Gate, also supply Semi-Automatic Bollards, Bollards, Manual Retractable bollards, Tyre Killers and Portable MVB for different security level selected. Our key products passed impact tests in China by GA/T 1343-2016 standard, also the only Chinese supplier passed the ASTM F2656, IWA 14-1:2013 and BSI PAS 68:2013 standard impact test in UK by MIRA. ZASP products are widely used in many locations across the Globe, such as Embassies, Airports, School locations, Government locations, Stadiums, Rail Stations, Banks, Energy Plants locations, Commercial sites, Private Residences and more.
